Description

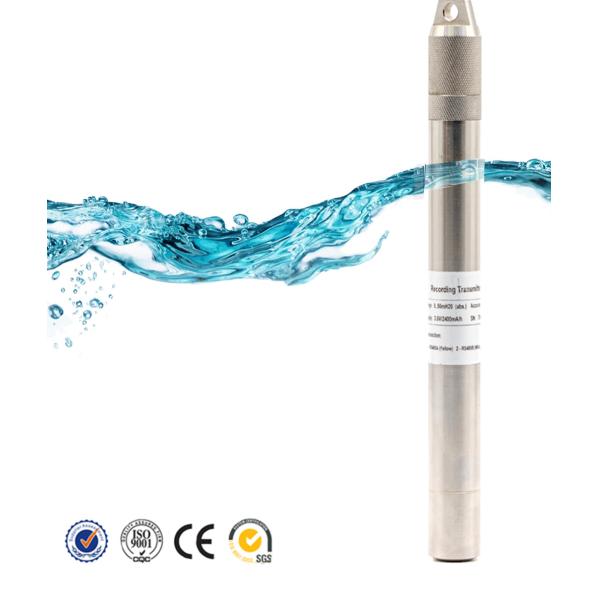

Data logger PL315 is a high –performance and cost-efficient product developed by our company. By using of the best low consumption integrated chip and taking advantage of digital technology, PL315 is designed to record water depth (pressure) over long term. It could be widely used in petroleum. Chemi-industry, power station, water conservancy, city flood control and city water supply etc.
PL315 is a battery powered instrument, and work without manual control. By setting proper interval recording time, one class AA battery 3.6/2400mAh is possible to support the PL315 working many years.
Feature
1. High measuring accuracy, resolution and robustness due to the
use of the latest Micro-processing technique.
2. High data security due to the use of a non-volatile memory.
3. Powered by one 3.6V/2400mAh Lithium battery; 20uA standby
current support long term collection.
4. Easy opening and replacing the battery due to the multi-O-ring
sealed construction.
5. Completely record the pressure, temperature and the recording time.
6. Flexibly set the collection interval time with the shortest interval time 1s,
and the longest interval time 255 hours 59 minutes 59 seconds.
7. 5000 recordings could be recorded.
8. Read the pressure and the temperature value via RS485 communication
interface at any time.
9. Back to factory setup offers customer easy to restore factory setup
when make incorrect operations and reduces the maintenance fees.
10.High stable, hardware watch-dog and muti-track software inspection
could reduce the system halted.
11.High protection ,class IP68
12.High accuracy class at wider temperature range -30~80℃.
Specification
| Pressure range | 0-0.1~1.1MPa (Absolute) |
| Environment Temp | -30~80°c |
| Overload pressure | 200%FS |
| Error | -10~+40°c 0.10%FS (typ.) 0.2%FS (max.) |
| | -30~+80°c 0.15%FS (typ.) 0.3%FS (max.) |
| Stability | <0.2%FS/year (typ.) |
| Pressure Resolution | 0.01%FS |
| Temperature Resolution | 0.1℃ (-30℃~80℃) |
| Temp. Accuracy | ±1℃ |
| Recording interval | 1s~255 hours 59 minutes 59 seconds (1s~10 days 15 hours 59 minutes 59 seconds) |
| Record data quantity | 50000 recordings (including data, time, temperature and pressure) |
| Recording mode | Recording stops when the records are 5000 recordings. |
| Power supply | Cylinder 3.6V/2400mAh Lithium battery (model:AA) |
| Static Current | ≈20uA (no collection, no recording, no communication) |
| Collection and Recording Current | ≈1.5mA |
| Memory Eliminate Current | ≈30mA |
| Output Signal | RS485 digital |
| Battery Life | 7 years (typ.) (1 measurement/hour) |
| Material | Housing: Stainless steel 316L (DIN1.4435) |
| | O-ring: Viton |
| Weight | ≈500g |
| Protection | IP68 |
| Insulation | 100mΩ / 50V |
| Vibration | 20g, 20 to 5000Hz |
| Shock | 20g, 11ms |
| Endurance | 1*10^7 pressure cycle, 0~100%FS, at temp.25℃ |
Dimension
Electric Connection
| Pin 1 | RS485 A |
| Pin 2 | RS485 B |
| Pin 3 | GND (connects to internal circuit) |
| Other pin is null |
Operating software
